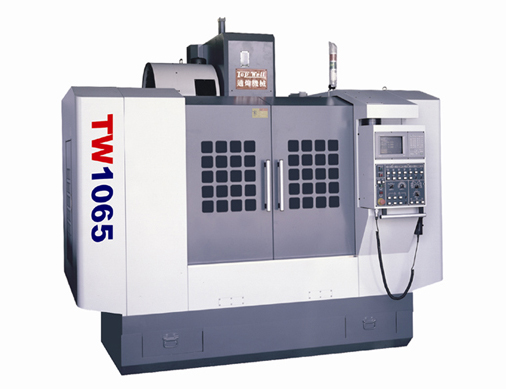

Model: TW-1065
TW-1065 SPECIFICATIONS
| MODEL | TW-1065 |
| Travel | |
| X axis (Longitudinal) | 1000 (40") |
| Y axis (Cross) | 650 (26.5") |
| Z axis (Vertical) | 600 (23.6") |
| Spindle nose to table surface | 125-725 (5" - 28.5") |
| Spindle center to column surface | 685 (27") |
| Table | |
| Table dimension | 600 x 1200 (20" x 40") |
| T-slots (wide x no. x pitch) | 18 (0.70") x 5 x 80 (3.15") |
| Table height from the floor | 860 (33.8") |
| Table load capacity | 800kgs (1760lbs) |
| Headstock | |
| Spindle nose (BT/CAT/DIN/ISO) | 40 Taper / 50 Taper |
| Spindle RPM (40 Taper) | 8000 / 10000 (opt.) |
| Spindle RPM (50 Taper) | 6000 / 8000 (opt.) |
| Feedrate | |
| Rapid traverse for X, Y, Z axis | 20000 mm. / min. (787 IPM) |
| Cutting feed for X, Y, Z axis | 1-10000 mm. / min. (0.04-400 IPM) |
| Motors | |
| Main motor #40 taper (cont./30min) | 11 kW / 15 kW |
| Main motor #50 taper (cont./30min) | 15 kW / 18.5 kW |
| AC servo motor for each axis | 2Kw-14NW / 3.5Kw-22NM (opt.) |
| Coolant system | 580W |
| Lubrication system | 25W |
| Chiller system | 850W for spindle speed over 8000RPM |
| Automatic tool changer | |
| Magazine for armless type | 16 / 20 tools |
| Magazine for arm type | 24 / 32 / 40 tools |
| Max. tool diameter | #40: 70 / 127 (3"/5") #50: 125 / 180 (5"/7") |
| Max. tool length | #40: 300 (11.8") BT50: 350 (13.8") |
| Max. tool weight | #40: 7 kgs (15lbs) ; #50: 15kgs (33lbs) |
| Accuracy | |
| Positioning | ±0.005 mm / ±0.002" |
| Repeatability | ±0.0050mm / ±0.002" |
| General information | |
| Air pressure | 5Kg / cm² over |
| Machine weight | 5800kgs (12760lbs) |
| Floor space (L x W x H) | 3200 x 2800 x 2700 (126" x 110" x 106") |
| CNC controller | Fanuc Oi-M/31i-M, Meldas M70V, Heidenhiem |
All specifications and designs are subject to change without notice.
|
|
Optional accessories |
|
|
Full enclosure guard |
Automatic lubrication system |
12000/15000rpm spindle with chiller |
|
Turning operation panel |
Spindle air purge system |
Coolant thru spindle preparation |
|
Rigid tapping |
Spindle air blow system |
ZF 2 stage gear head with oil chiller |
|
MPG (hand wheel) |
Coolant system with coolant tank | Chip flushing system with high |
|
Halogen work light |
Programmable coolant nozzle |
pressure pump |
|
Leveling bolts and blocks |
Heat exchanger of electrical cabinet |
Chain type chip conveyor with bucket |
|
Beacon light |
Tool box for machine set up |
4th axis interface |
|
Automatic power off (M30) |
|
Transformer |
